FILE INFORMATION

Ranked as 4344 on our all-time top downloads list with 5196 downloads.
Ranked as 3684 on our top downloads list for the past seven days with 5 downloads.

analogfilters.zip

Filename	analogfilters.zip
Title	Butterworth and Chevishev Filter Generators
Description	Takes cut-off frequency, degree, bandwidth and type of filter and generates a Butterworth or Chevishev filter with inductors and capacitors.
Author	Roberto J. Guerra (rguerra@gonzaga.edu)
Category	TI-89 BASIC Science Programs
File Size	58,285 bytes
File Date and Time	Sun Dec 16 08:42:55 2001
Documentation Included?	Yes

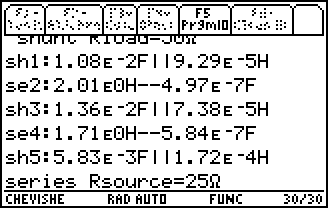

SCREEN SHOTS

RATING

If you have downloaded and tried this program, please rate it on the scale below

REVIEWS

There are no reviews for this file. Do you want to write one?

ARCHIVE CONTENTS

Archive Contents

Name	Size
butterwr.89G	2387
chevishe.89G	2541
chevishev_circuit.gif	8145
butterworth_frequency.gif	10395
butterworth_howto.html	2174
butterworth_results.gif	3661
butterworth_circuit.gif	15445
chevishev_frequency.gif	12131
chevishev_howto.html	2305
chevishev_results.gif	3485
